Emuge

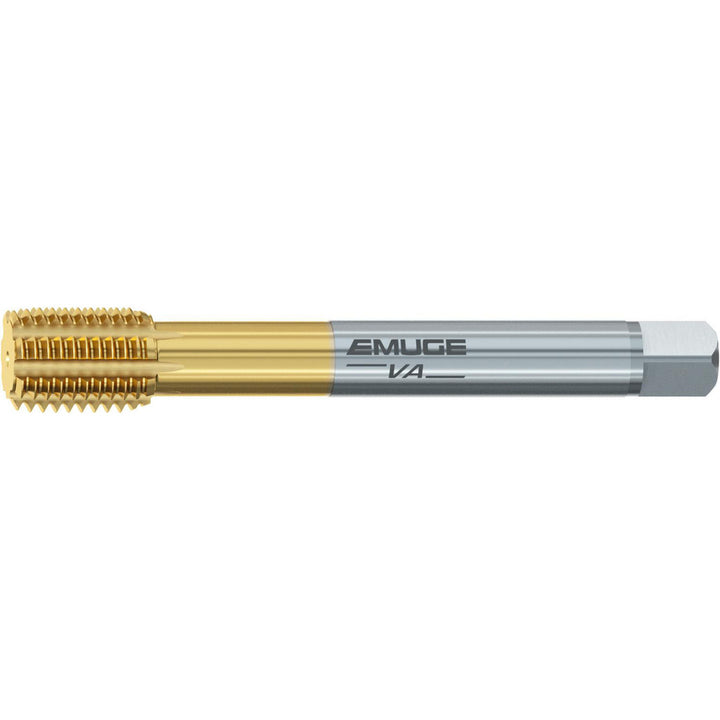

5/8-11 UNC High-Speed Steel-E-PM Tap, TiN-T26 - Emuge CU396A00.5015
MFR# CU396A00.5015Series CU396A00
$216.80List $243.56
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/8-11
CoatingTiN-T26
Description
The Emuge CU396A00.5015 is a 5/8-11 UNC High-Speed Steel-E-PM tap with a TiN-T26 finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2BX
Coating finishTiN-T26
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel
Material application codeP; M
Overall length4.3307
Shank diameter0.4800
Square size0.3600
Thread directionRight Hand
Thread length0.8661
Thread limitH6
Thread size in5/8-11
Thread standardUNC
Trade nameInnoForm 2-VA/E-SN-PM-TiN-T26
