Emuge

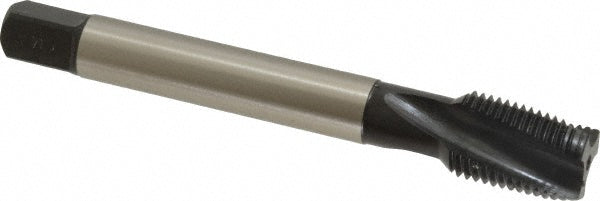

9/16-18 UNF Cobalt Tap, Oxide - Emuge CU456011.5048
MFR# CU456011.5048Series Rekord D-Ti
$148.40List $166.72
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size9/16-18
CoatingOxide
Description
The Emuge CU456011.5048 is a 9/16-18 UNF Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferModified Bottoming
Class of fit3BX
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationTitanium
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter0.4290
Square size0.3220
Threads per inch18
Thread directionRight Hand
Thread length0.8660
Thread size in9/16-18
Thread standardUNF
