Emuge

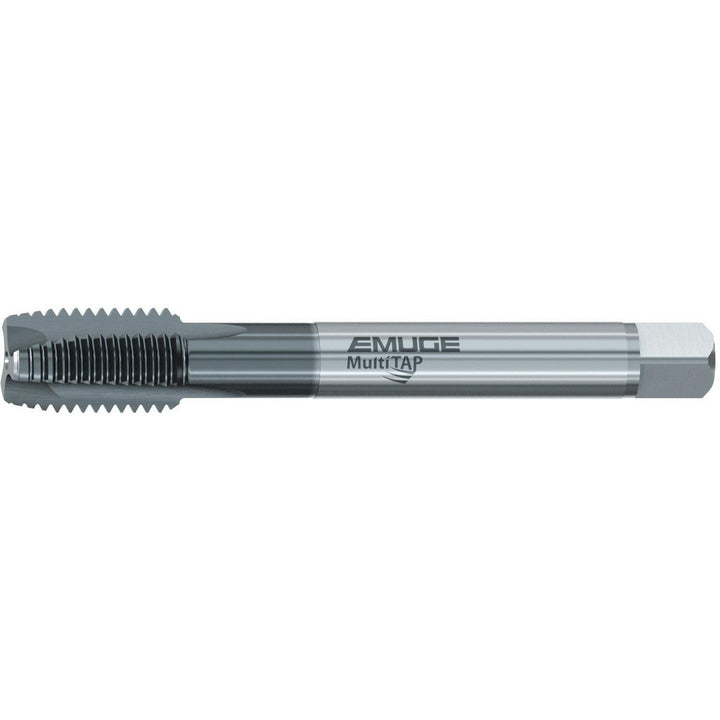

M24x3 Metric HSS-E Cobalt Spiral Point Tap, TiCN - Emuge CU499300.0124
MFR# CU499300.0124Series CU499300
$156.69List $186.37
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Emuge CU499300.0124 is a Metric HSS-E Cobalt Spiral Point tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Number of flutes3
Overall length (mm)160
OversizeNo
Shank diameter0.7600
Square size (mm)14.48
StyleSpiral Point
Threads per inch8.47
Thread directionRight Hand
Thread length (mm)34.00
Thread pitch (mm)3
Thread size (mm)M24x3
Thread standardMetric
