Emuge

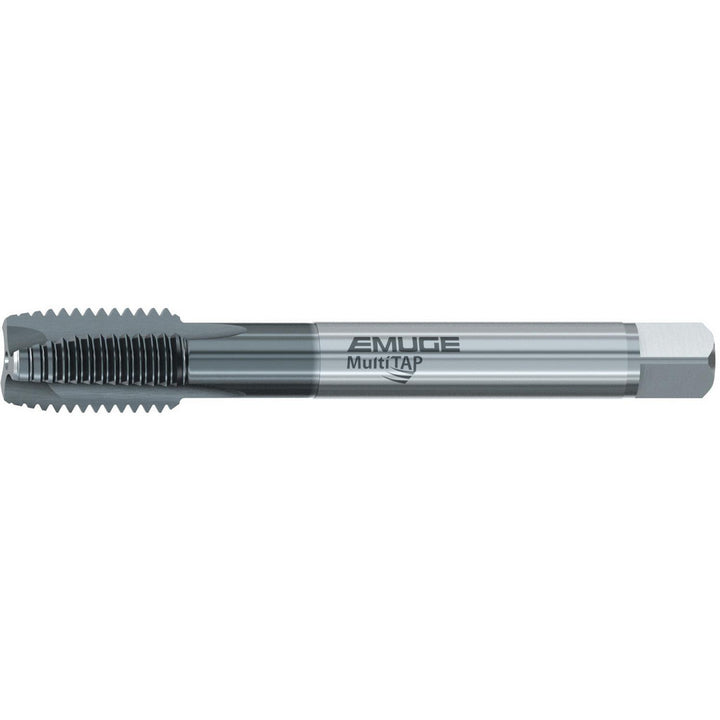

5/8-11 UNC HSS-E Cobalt Spiral Point Tap, TiCN - Emuge CU499300.5015
MFR# CU499300.5015Series CU499300
$77.76List $87.36
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
CoatingTiCN
Description
The Emuge CU499300.5015 is a 5/8-11 UNC HSS-E Cobalt Spiral Point tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Measurement typeDecimal Inch
Number of flutes3
Overall length4.3310
OversizeNo
Shank diameter0.4800
Square size (mm)9.14
StyleSpiral Point
Threads per inch11
Thread directionRight Hand
Thread length in1-1/16
Thread pitch0.0909
Thread size in5/8-11
Thread standardUNC
