Emuge

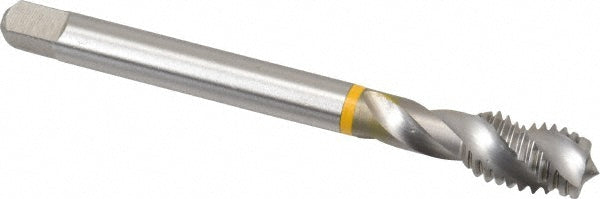

1/2-13 UNC Cobalt Tap - Emuge CU501000.5013
MFR# CU501000.5013Series Enorm
$74.97List $84.23
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
Description
The Emuge CU501000.5013 is a 1/2-13 UNC Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationNon-Ferrous Metal; Steel
Number of flutes3
Overall length4.3310
OversizeNo
Shank diameter0.3670
Square size0.2750
Threads per inch13
Thread directionRight Hand
Thread length0.7870
Thread size in1/2-13
Thread standardUNC
