Emuge

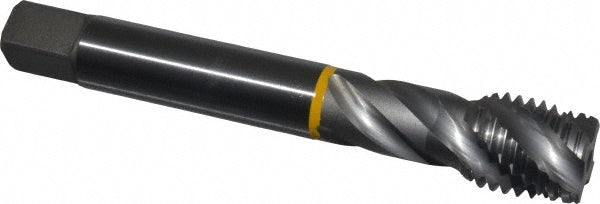

1-8 UNC Cobalt Tap - Emuge CU501000.5018
MFR# CU501000.5018Series Enorm
$219.21List $260.74
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-8
Description
The Emuge CU501000.5018 is a 1-8 UNC Cobalt tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationNon-Ferrous Metal; Steel
Number of flutes4
Overall length6.2990
OversizeNo
Shank diameter0.8000
Square size0.6000
Threads per inch8
Thread directionRight Hand
Thread length1.1810
Thread size in1-8
Thread standardUNC
