Emuge

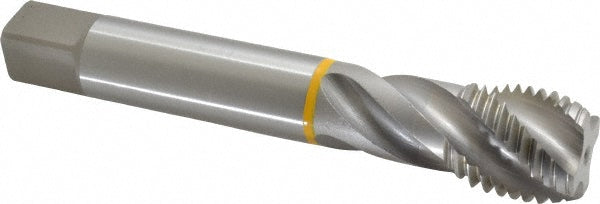

1-1/4-7 UNC Cobalt Tap - Emuge CU501000.5020
MFR# CU501000.5020Series Enorm
$402.04List $451.68
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-1/4-7
Description
The Emuge CU501000.5020 is a 1-1/4-7 UNC Cobalt tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationNon-Ferrous Metal; Steel
Number of flutes4
Overall length7.0870
OversizeNo
Shank diameter1.0210
Square size0.7660
Threads per inch7
Thread directionRight Hand
Thread length1.3780
Thread size in1-1/4-7
Thread standardUNC
