Emuge

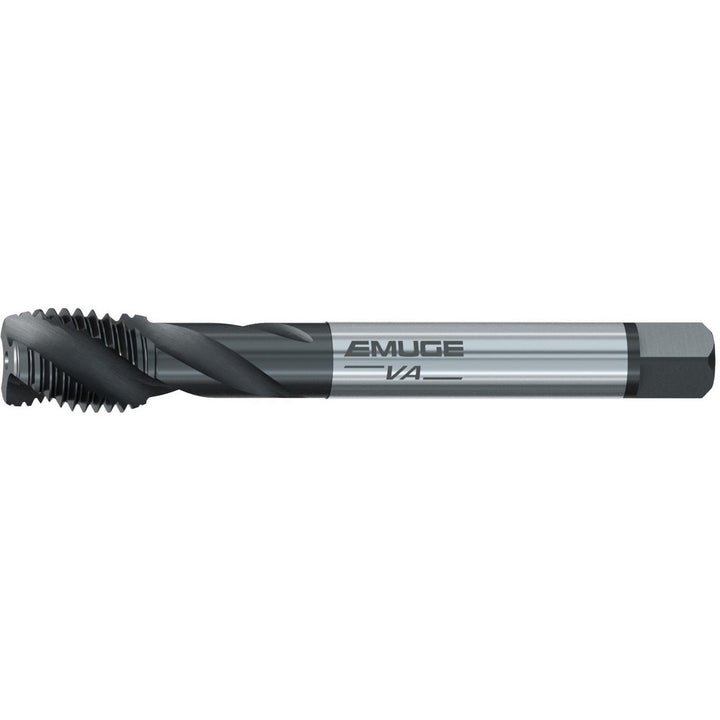

9/16-12 UNC Cobalt Tap, Oxide - Emuge CU503200.5014
MFR# CU503200.5014Series Enorm-VA
$119.97List $134.78
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size9/16-12
CoatingOxide
Description
The Emuge CU503200.5014 is a 9/16-12 UNC Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle39
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes3
Overall length4.3310
OversizeNo
Shank diameter0.4290
Square size0.3220
Threads per inch12
Thread directionRight Hand
Thread length0.7870
Thread size in9/16-12
Thread standardUNC
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
