Emuge

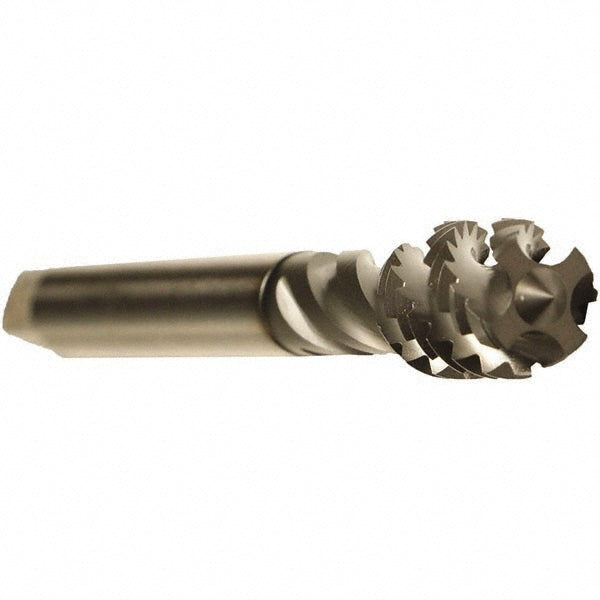

5/8-11 UNC Cobalt Tap, Proprietary - Emuge CU50C400.5015
MFR# CU50C400.5015Series Enorm
$183.79List $206.49
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
CoatingProprietary
Description
The Emuge CU50C400.5015 is a 5/8-11 UNC Cobalt tap with a Proprietary finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum Alloy; Copper; Copper Alloy; Stainless Steel; Steel
Number of flutes4
Overall length4.3310
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.4800
Shank length3.4650
Thread directionRight Hand
Thread length0.8660
Thread size in5/8-11
Thread standardUNC
