Emuge

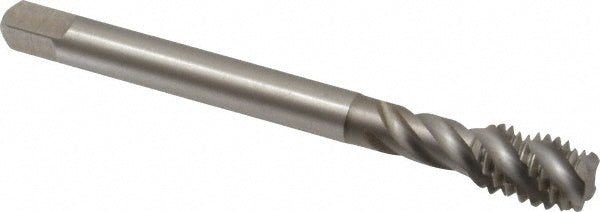

7/16-14 UNC Cobalt Tap - Emuge CU513500.5012
MFR# CU513500.5012Series Enorm Z
$93.69List $105.26
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/16-14
Description
The Emuge CU513500.5012 is a 7/16-14 UNC Cobalt tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes4
Overall length3.9370
OversizeNo
Shank diameter0.3230
Square size0.2420
Threads per inch14
Thread directionRight Hand
Thread length0.7090
Thread size in7/16-14
Thread standardUNC
