Emuge

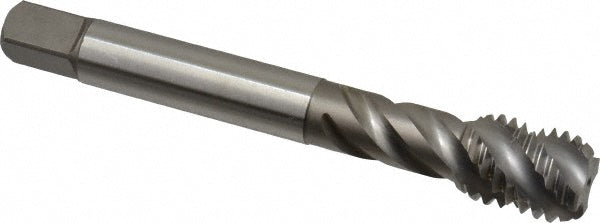

5/8-11 UNC Cobalt Tap - Emuge CU513500.5015
MFR# CU513500.5015Series Enorm Z
$152.40List $171.21
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
Description
The Emuge CU513500.5015 is a 5/8-11 UNC Cobalt tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes4
Overall length4.3310
OversizeNo
Shank diameter0.4800
Square size0.3600
Threads per inch11
Thread directionRight Hand
Thread length0.8660
Thread size in5/8-11
Thread standardUNC
