Emuge

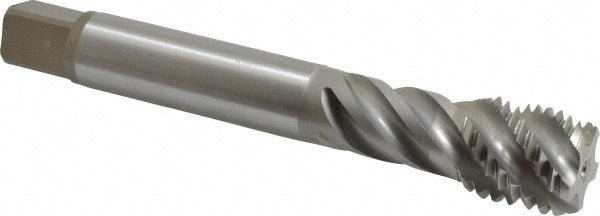

1-8 UNC Cobalt Tap - Emuge CU513500.5018
MFR# CU513500.5018Series Enorm Z
$288.19List $323.77
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size1-8
Description
The Emuge CU513500.5018 is a 1-8 UNC Cobalt tap. 5 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes5
Overall length6.2990
OversizeNo
Shank diameter0.8000
Square size0.6000
Thread directionRight Hand
Thread length1.1810
Thread size in1-8
Thread standardUNC
