Emuge

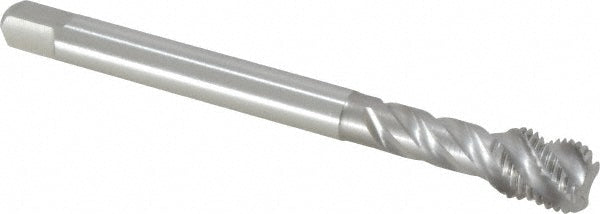

7/16-20 UNF Cobalt Tap - Emuge CU513500.5046
MFR# CU513500.5046Series Enorm Z
$91.87List $109.28
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/16-20
Description
The Emuge CU513500.5046 is a 7/16-20 UNF Cobalt tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes4
Overall length3.9370
OversizeNo
Shank diameter0.3230
Square size0.2420
Threads per inch20
Thread directionRight Hand
Thread length0.5120
Thread size in7/16-20
Thread standardUNF
