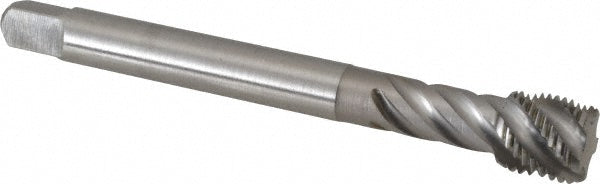

1/2-20 UNF Cobalt Tap - Emuge CU513500.5047

Emuge

1/2-20 UNF Cobalt Tap - Emuge CU513500.5047

MFR# CU513500.5047Series Enorm Z

$93.20List $110.86 Save 15%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
Thread size1/2-20

Description

The Emuge CU513500.5047 is a 1/2-20 UNF Cobalt tap. 5 flutes.

Specifications

ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes5
Overall length3.9370
OversizeNo
Shank diameter0.3670
Square size0.2750
Threads per inch20
Thread directionRight Hand
Thread length0.5120
Thread size in1/2-20
Thread standardUNF
