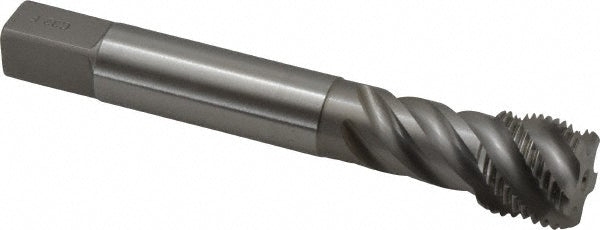

3/4-16 UNF Cobalt Tap - Emuge CU513500.5050

Emuge

3/4-16 UNF Cobalt Tap - Emuge CU513500.5050

MFR# CU513500.5050Series Enorm Z

$195.74List $232.82 Save 15%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
Thread size3/4-16

Description

The Emuge CU513500.5050 is a 3/4-16 UNF Cobalt tap. 5 flutes.

Specifications

ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes5
Overall length4.3310
OversizeNo
Shank diameter0.5900
Square size0.4420
Threads per inch16
Thread directionRight Hand
Thread length0.6690
Thread size in3/4-16
Thread standardUNF
