Emuge

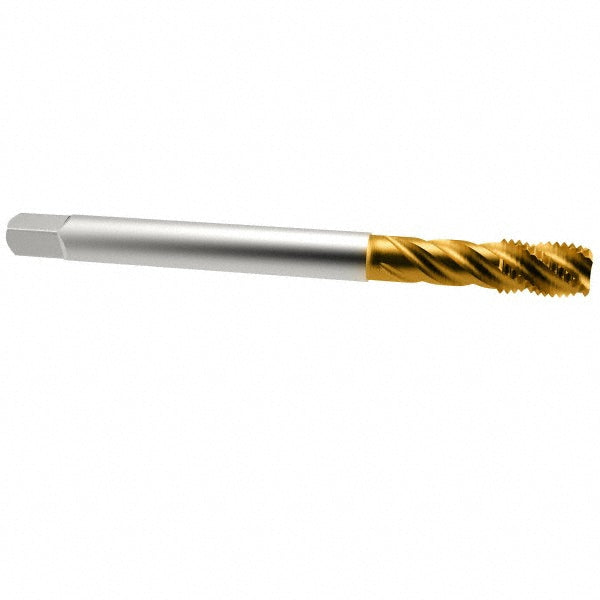

1/2-13 UNC Cobalt Tap, TiN - Emuge CU513700.5013
MFR# CU513700.5013Series Enorm Z
$113.41List $127.41
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/2-13
CoatingTiN
Description
The Emuge CU513700.5013 is a 1/2-13 UNC Cobalt tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes4
Overall length4.3310
OversizeNo
Shank diameter0.3670
Square size0.2750
Threads per inch13
Thread directionRight Hand
Thread length0.7870
Thread size in1/2-13
Thread standardUNC
