Emuge

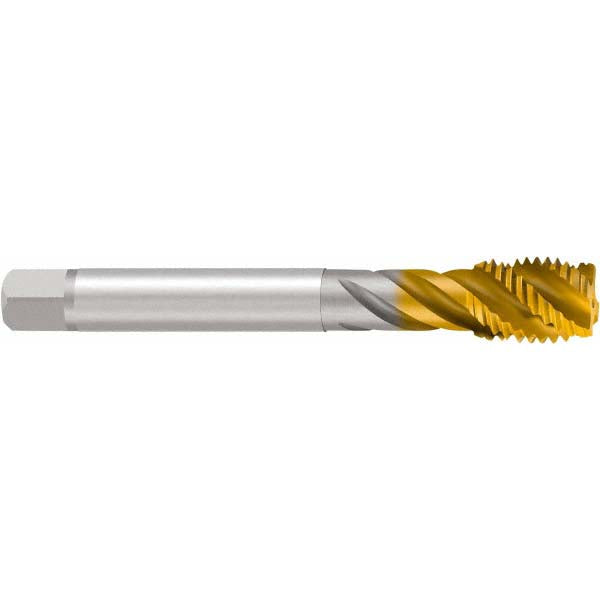

7/8-9 UNC Cobalt Tap, TiN - Emuge CU513700.5017
MFR# CU513700.5017Series Enorm
$286.94List $322.37
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size7/8-9
CoatingTiN
Description
The Emuge CU513700.5017 is a 7/8-9 UNC Cobalt tap with a TiN finish. 5 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationAlloy Steel; Aluminum Alloy; Copper Alloy
Number of flutes5
Overall length5.5120
OversizeNo
Shank diameter0.6970
Square size0.5230
Threads per inch9
Thread directionRight Hand
Thread length1.0630
Thread size in7/8-9
Thread standardUNC
