Emuge

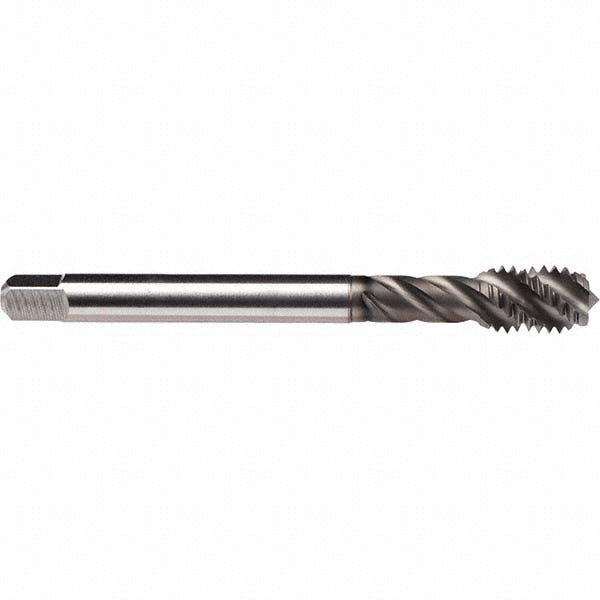

7/16-14 UNC Cobalt Tap, Proprietary - Emuge CU51C410.5012
MFR# CU51C410.5012Series CU51C410
$99.79List $115.38
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/16-14
CoatingProprietary
Description
The Emuge CU51C410.5012 is a 7/16-14 UNC Cobalt tap with a Proprietary finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit3B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationNon-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy
Number of flutes4
Overall length3.9370
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.3230
Square size0.2420
Threads per inch14
Thread directionRight Hand
Thread length0.7090
Thread limitH4
Thread size in7/16-14
Thread standardUNC
