Emuge

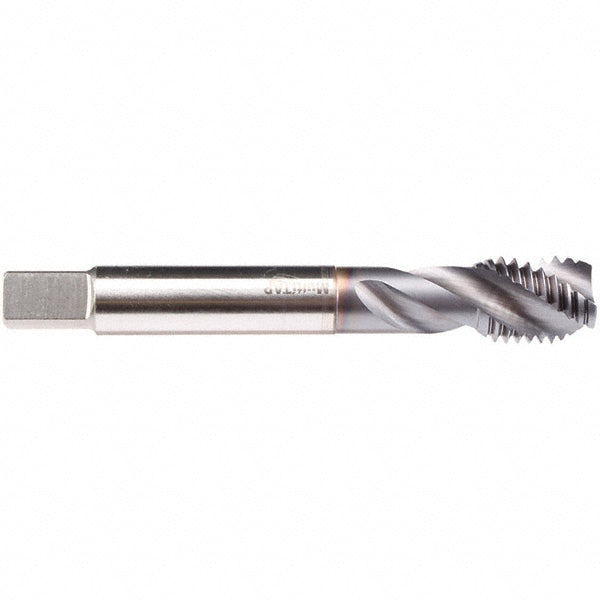

7/8-9 UNC Cobalt Tap, TiCN - Emuge CU539300.5017
MFR# CU539300.5017Series CU539300
$199.25List $223.85
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/8-9
CoatingTiCN
Description
The Emuge CU539300.5017 is a 7/8-9 UNC Cobalt tap with a TiCN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B/3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle35
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Copper; Stainless Steel
Number of flutes4
Overall length5.5120
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.6970
Square size0.5230
Threads per inch9
Thread directionRight Hand
Thread length1.2600
Thread size in7/8-9
Thread standardUNC
