Emuge

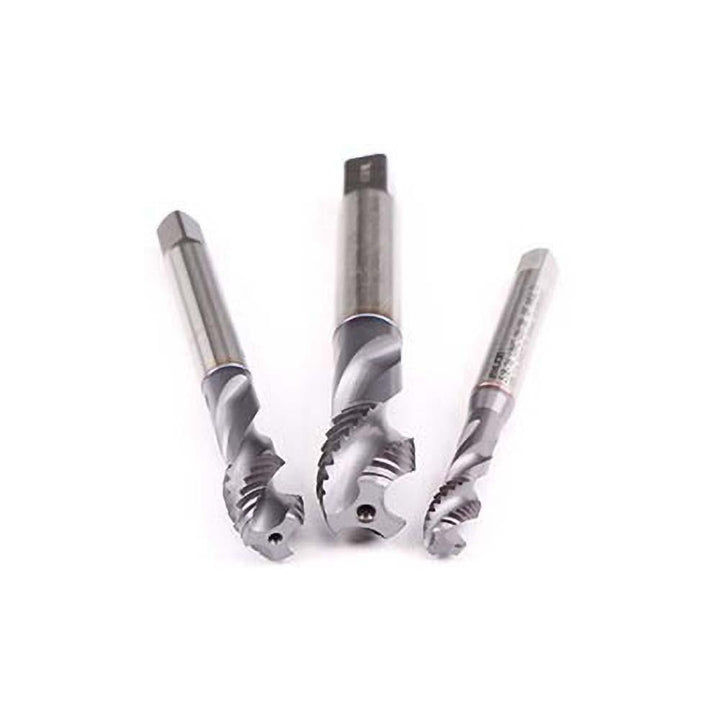

9/16-18 UNF Cobalt Tap, TiCN - Emuge CU539300.5048
MFR# CU539300.5048Series Enorm
$93.49List $108.10
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size9/16-18
CoatingTiCN
Description
The Emuge CU539300.5048 is a 9/16-18 UNF Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B/3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle35
MaterialCobalt
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Number of flutes3
Overall length4.3310
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4290
Square size0.3220
Threads per inch18
Thread directionRight Hand
Thread length1.0240
Thread size in9/16-18
Thread standardUNF
