Emuge

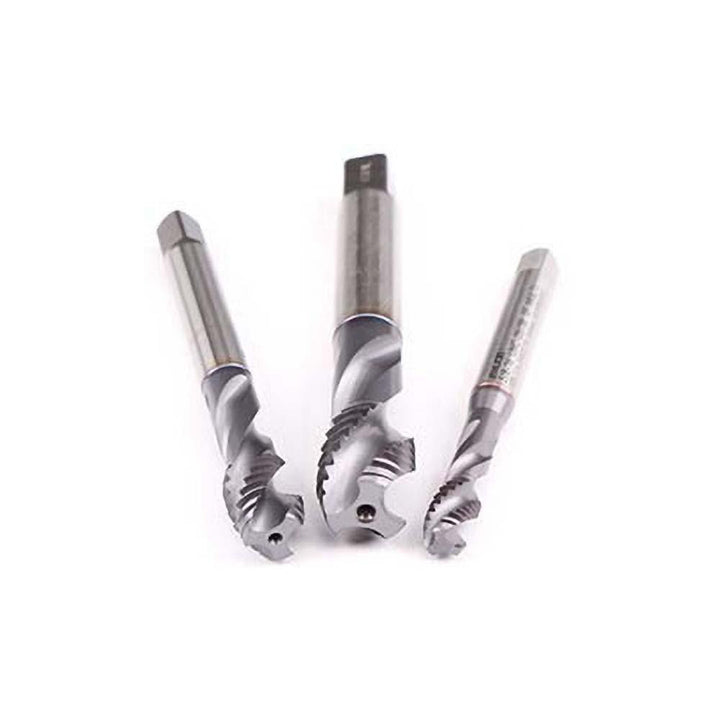

5/8-11 UNF Tap, TiCN - Emuge CU539300.5049
MFR# CU539300.5049Series Enorm
$114.67List $128.82
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
CoatingTiCN
Description
The Emuge CU539300.5049 is a 5/8-11 UNF tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B/3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle35
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Number of flutes3
Overall length4.3310
OversizeNo
Shank diameter0.4800
Square size0.3600
Threads per inch11
Thread directionRight Hand
Thread length1.0630
Thread size in5/8-11
Thread standardUNF
