Emuge

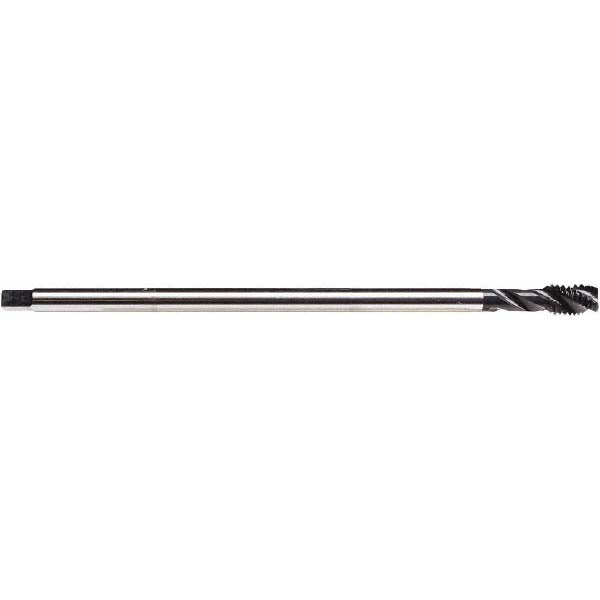

5/8-18 UNF Cobalt Spiral Flute Tap, Ne2 - Emuge CU783200.5049
MFR# CU783200.5049
$204.29List $229.51
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-18
CoatingNe2
Description
The Emuge CU783200.5049 is a 5/8-18 UNF Cobalt Spiral Flute tap with a Ne2 finish. 3 flutes.
Specifications
ChamferSemi-Bottoming
Class of fit2B; 3B
Coating finishNe2
Flute directionRight Hand
MaterialCobalt
Material applicationAluminum; Carbon Steel; Copper; Stainless Steel
Number of flutes3
Overall length7.9000
Reduced shankYes
Shank diameter0.4800
Square size0.3220
Tap typeSpiral Flute
Thread length in1-1/8
Thread size in5/8-18
Thread standardUNF
