Emuge

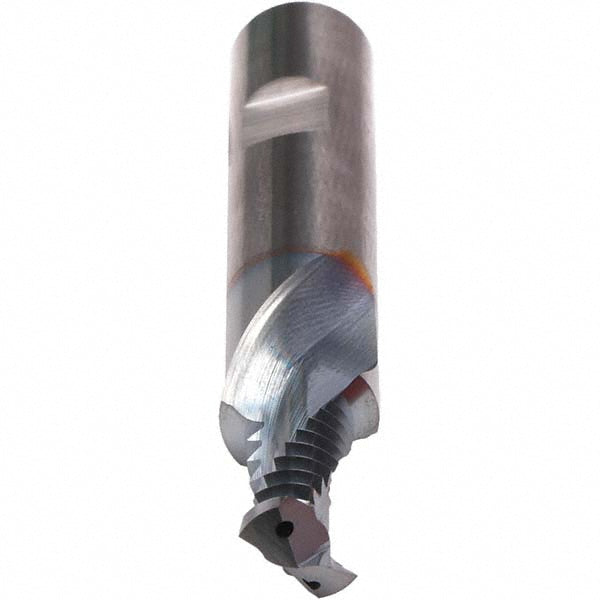

Helical Flute Thread Mills - Emuge GF422206.5011
MFR# GF422206.5011
$623.52List $799.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size3/8-16
CoatingTiCN
Description
The Emuge GF422206.5011 helical flute thread mills.
Specifications
Coating finishTiCN
Coolant throughYes
Cutting diameter0.3150
Flute directionRight Hand
Length of cut0.5650
MaterialSolid Carbide
Minimum nominal diameter in0.3750
Number of flutes2
Overall length3.1500
Shank diameter (mm)12.00
Shank length1.7720
Teeth per inch16
Thread size in3/8-16
Thread standardUNC
Thread typeInternal
