Emuge

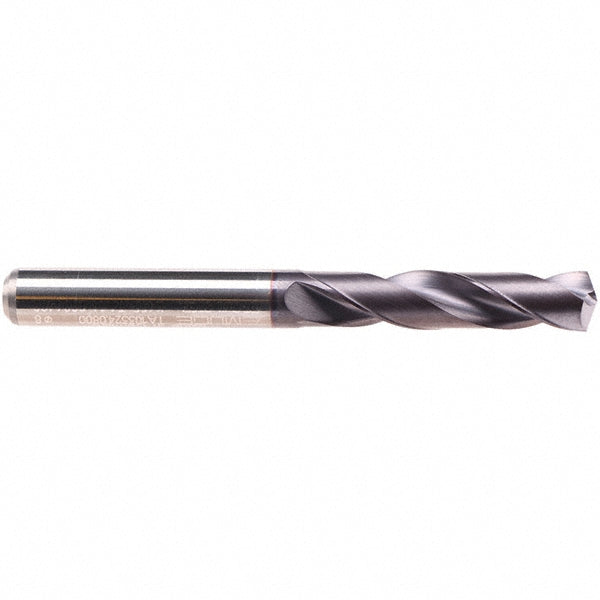

0.1268" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Emuge TA103324.0322
MFR# TA103324.0322Series 3XD Solid
$86.49List $105.87
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Emuge TA103324.0322 is a 0.1268" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Series 3XD Solid.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size0.1268
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)20.00
Flute typeSpiral
Material gradeSubmicron
Number of flutes2
Number of margins1
Overall length (mm)62.00
Point typeFour Facet
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
StandardsDIN 6535
Tool materialSolid Carbide
Web thinningWeb-Thinned
