Emuge

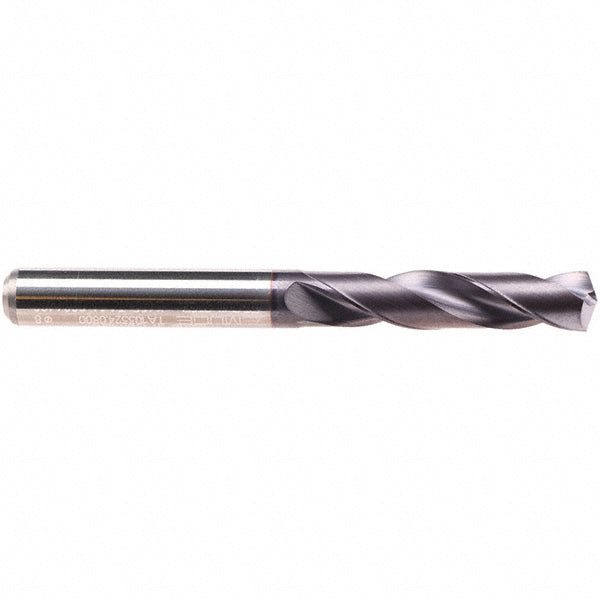

3/16" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Emuge TA209744.0476
MFR# TA209744.0476Series 3XD Solid
$87.95List $91.81
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
CoatingTiAlN
Description
The Emuge TA209744.0476 is a 3/16" Solid Carbide Screw Machine drill bit with a TiAlN finish, 140° point. Series 3XD Solid.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size in3/16
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)1.00
Flute by diameter ratio3xD
Flute length1.1024
Flute typeRegular Spiral
Material gradeSubmicron
Maximum drilling depth (mm)20.00
Number of flutes2
Number of margins1
Overall length2.5984
Point typeSelf Centering
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
StandardsDIN 6535
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
