Emuge

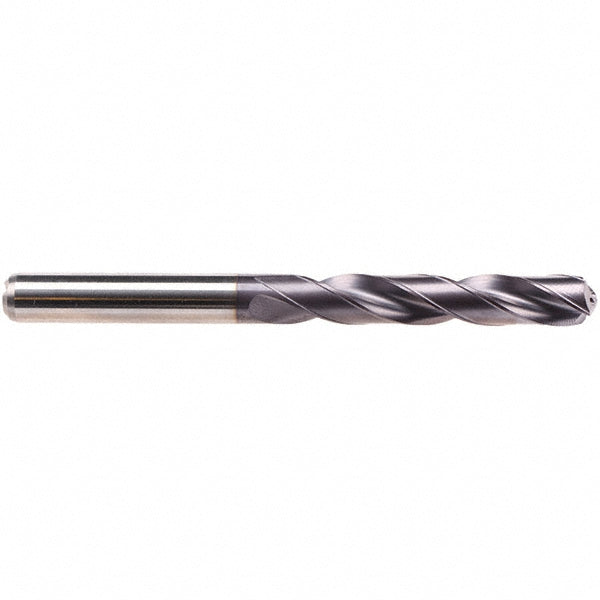

0.1634" Solid Carbide Drill Bit, TiAlN, 140° point - Emuge TA213344.0415
MFR# TA213344.0415Series EF-DRILL
$144.12List $153.39
Save 6%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Emuge TA213344.0415 is a 0.1634" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for titanium alloy. Series EF-DRILL.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1634
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)36.00
Flute typeSpiral
Material gradeSub Micrograin
Number of flutes2
Overall length (mm)74.00
Point typeFour Facet
Primary workpiece materialTitanium Alloy
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535
Spiral typeRegular
Web thinningWeb-Thinned
