Emuge

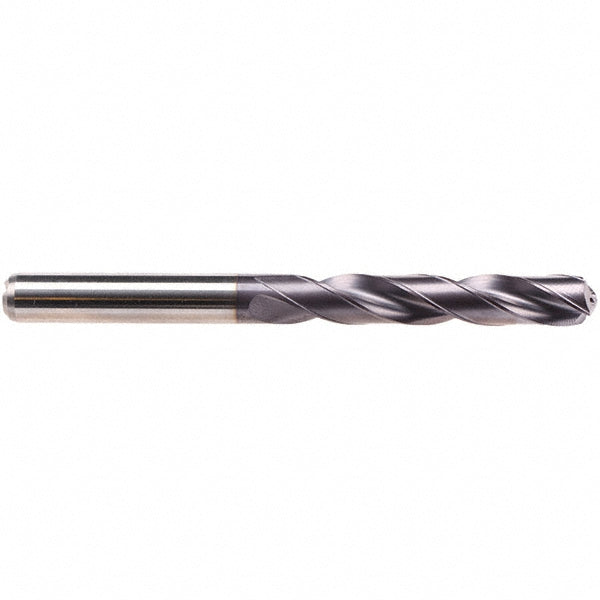

1/4" Solid Carbide Drill Bit, TiAlN, 140° point - Emuge TA213344.0635
MFR# TA213344.0635
$168.08List $201.82
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
CoatingTiAlN
Description
The Emuge TA213344.0635 is a 1/4" Solid Carbide drill bit with a TiAlN finish, 140° point.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Drill point length (mm)1.30
Flute by diameter ratio5xD
Flute length (mm)53.00
Flute typeSpiral
Material gradeSub Micrograin
Maximum drilling depth (mm)43.00
Number of flutes2
Overall length (mm)91.00
Point typeFour Facet
Shank diameter (mm)8.00
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
Web thinningWeb-Thinned
