Emuge
0.1713" Solid Carbide Drill Bit, TiAlN, 140° point - Emuge TA219744.0435
MFR# TA219744.0435Series MultiDRILL
$90.09List $108.04
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description

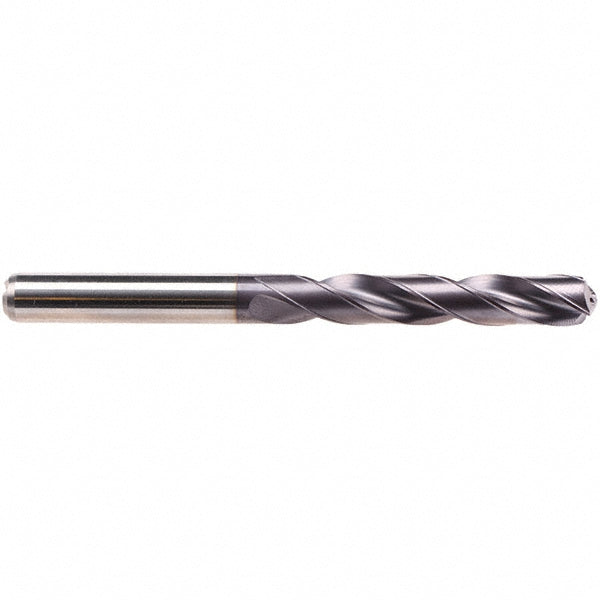

The Emuge TA219744.0435 is a 0.1713" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for universal. Series MultiDRILL.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1713
Drill point angle degrees140
Drill point length (mm)0.80
Flute by diameter ratio5xD
Flute length1.4173
Flute typeRegular Spiral
Material gradeSub Micrograin
Maximum drilling depth1.1417
Number of flutes2
Overall length2.9134
Point typeSelf Centering
Primary workpiece materialUniversal
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537 L
Spiral typeRegular
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
