Emuge

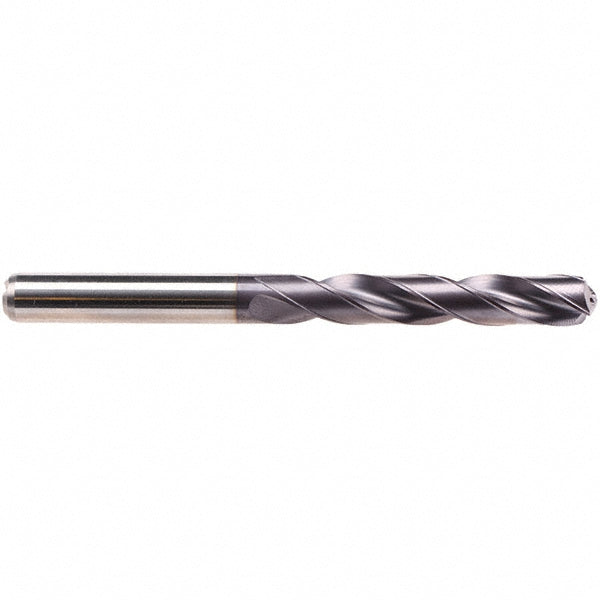

0.2854" Solid Carbide Drill Bit, TIALN, 140° point - Emuge TA219744.0725
MFR# TA219744.0725Series TA219744
$101.20List $121.35
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTIALN
Description
The Emuge TA219744.0725 is a 0.2854" Solid Carbide drill bit with a TIALN finish, 140° point. Suited for universal. Series TA219744.
Specifications
Coating finishTIALN
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2854
Drill point angle degrees140
Drill point length (mm)1.50
Flute by diameter ratio5xD
Flute length2.0866
Flute typeSpiral
Material gradeSub Micrograin
Maximum drilling depth1.9291
Number of flutes2
Overall length3.5827
Point typeSelf Centering
Primary workpiece materialUniversal
Shank diameter0.315
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537 L
Spiral typeRegular
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
