Emuge
0.3661" Solid Carbide Drill Bit, TiAlN-T63, 140° point - Emuge TA219744.0930
MFR# TA219744.0930Series TA219744
$122.28List $153.92
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN-T63
Description

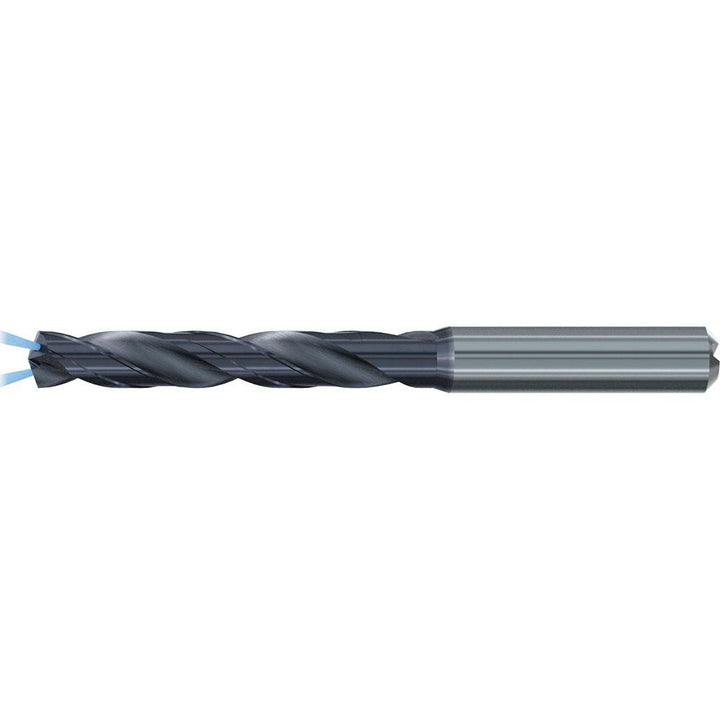

The Emuge TA219744.0930 is a 0.3661" Solid Carbide drill bit with a TiAlN-T63 finish, 140° point. Series TA219744.
Specifications
Coating finishTiAlN-T63
Coolant throughYes
Cutting directionRight Hand
Drill bit materialSolid Carbide
Drill bit size0.3661
Drill point angle degrees140
Drill point length (mm)1.90
Flute by diameter ratio5xD
Flute length (mm)61.00
Flute typeSpiral
Maximum drilling depth (mm)49.00
Number of flutes2
Overall length (mm)103.00
Point typeSelf Centering
Shank diameter (mm)10.00
Shank length (mm)40
Shank typeStraight-Cylindrical
Spiral typeRegular
