Emuge

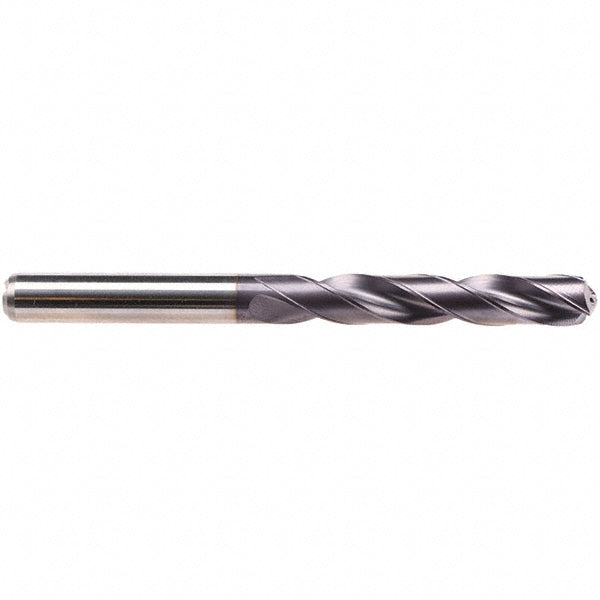

0.3720" Solid Carbide Drill Bit, TIALN, 140° point - Emuge TA219744.0945
MFR# TA219744.0945Series TA219744
$140.50List $146.66
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTIALN
Description
The Emuge TA219744.0945 is a 0.3720" Solid Carbide drill bit with a TIALN finish, 140° point. Suited for universal. Series TA219744.
Specifications
Coating finishTIALN
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.3720
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length2.4016
Flute typeSpiral
Material gradeSub Micrograin
Maximum drilling depth1.9291
Number of flutes2
Overall length4.0551
Point typeSelf Centering
Primary workpiece materialUniversal
Shank diameter0.3937
Shank length1.5748
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537 L
Spiral typeRegular
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
