Emuge

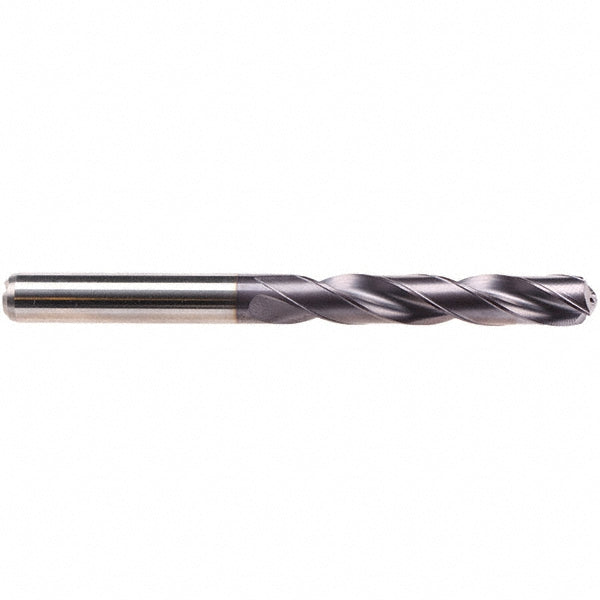

0.4783" Solid Carbide Drill Bit, TIALN, 140° point - Emuge TA219744.1215
MFR# TA219744.1215Series TA219744
$275.74List $287.84
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTIALN
Description
The Emuge TA219744.1215 is a 0.4783" Solid Carbide drill bit with a TIALN finish, 140° point. Suited for universal. Series TA219744.
Specifications
Coating finishTIALN
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.4783
Drill point angle degrees140
Drill point length (mm)2.40
Flute by diameter ratio5xD
Flute length2.7953
Flute typeSpiral
Material gradeSub Micrograin
Maximum drilling depth2.2047
Number of flutes2
Overall length4.6457
Point typeSelf Centering
Primary workpiece materialUniversal
Shank diameter0.5512
Shank length1.7717
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537 L
Spiral typeRegular
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
