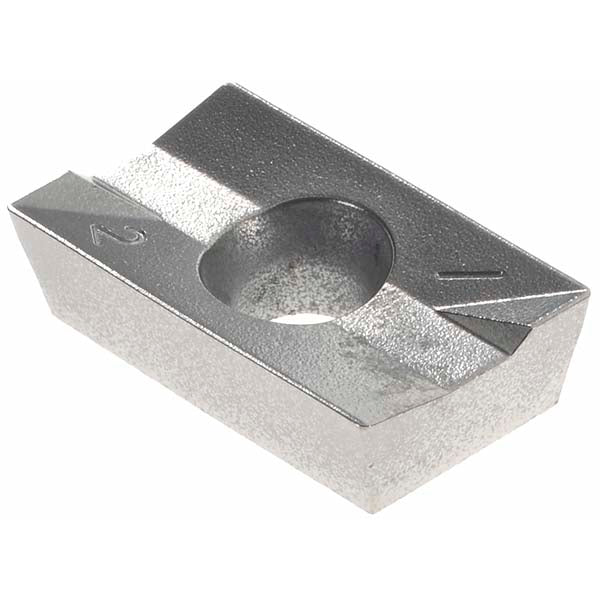

APKT 160404 Solid Carbide Insert, Grade CS2 - Everede Tool 04003

MFR# 04003ISO/ANSI# APKT 160404Cat# APLT347Series APLT

$12.93List $14.43 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeCS2
MaterialSolid Carbide

Description

The Everede Tool 04003 is a APKT 160404 solid carbide indexable insert, grade CS2. Suited for non-ferrous metal.

Specifications

Ansi codeAPLT347
Chip breakerCommon
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityCHM
Cutting edge effective length0.3750
Cutting edge styleSingle Sided
Hole diameter0.1730
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160404
Insert styleAPKT
Iso codeAPKT 160404
Length0.5910
Length range0.5000 to 0.6000
Manufacturers catalog numberAPLT347
Manufacturer gradeCS2
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Maximum depth of cut0.5760
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
