Everede Tool

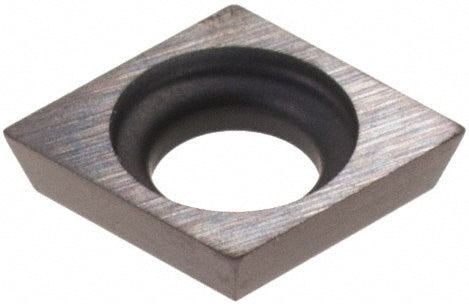

CDHB S4T000 Solid Carbide Insert, Grade TL120, TiAlN - Everede Tool 04057
MFR# 04057ISO/ANSI# CDHB S4T000Series CDCD
$12.90List $15.60
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeDiamond
GradeTL120
MaterialSolid Carbide
CoatingTiAlN
Description
The Everede Tool 04057 is a CDHB S4T000 solid carbide indexable insert, grade TL120, TiAlN coated.
Specifications
Ansi codeCDHB-1.20.60
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Included angle80
Inscribed circle in5/32
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code02
Insert styleCDCD
Iso codeCDHB S4T000
Manufacturer gradeTL120
Material gradeC1
Relief angle15
ShapeDiamond
StandardsANSI; ISO
Thickness0.0400
