Everede Tool

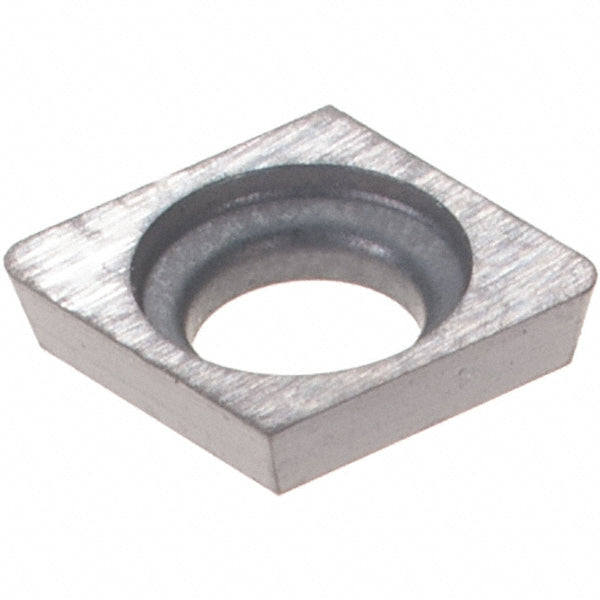

CDHB S4T004 Solid Carbide Insert, Grade TL120, TiAlN - Everede Tool 04061
MFR# 04061ISO/ANSI# CDHB S4T004Series CDCD
$12.68List $15.60
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTL120
MaterialSolid Carbide
CoatingTiAlN
Description
The Everede Tool 04061 is a CDHB S4T004 solid carbide indexable insert, grade TL120, TiAlN coated.
Specifications
Ansi codeCDHB-1.20.61
Coating finishTiAlN
Coating processPVD
Corner radius0.0150
Inscribed circle0.1560
Insert materialSolid Carbide
Insert size code15
Insert styleCDCD
Iso codeCDHB S4T004
Manufacturer gradeTL120
Relief angle15
StandardsANSI; ISO
Thickness0.0400
