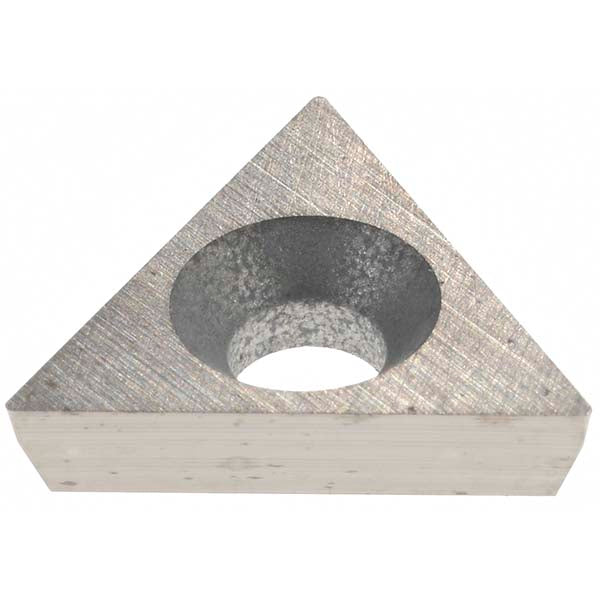

TPGB 110202 Solid Carbide Insert, Grade CS2 - Everede Tool 04179
MFR# 04179ISO/ANSI# TPGB 110202Series TPGB
$11.15List $12.80
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCS2
MaterialSolid Carbide
Description
The Everede Tool 04179 is a TPGB 110202 solid carbide indexable insert, grade CS2.
Specifications
Ansi codeTPGB-21.50.5
Corner radius0.0070
Included angle60
Inscribed circle in1/4
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code207
Insert styleTPGB
Iso codeTPGB 110202
Manufacturer gradeCS2
Material gradeC2
Relief angle11
ShapeTriangle
StandardsANSI; ISO
Thickness in3/32
