Everede Tool

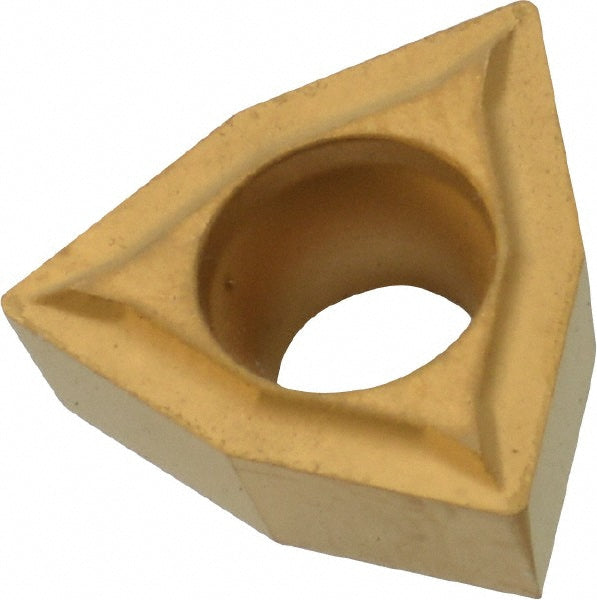

WCGT 06T304 Solid Carbide Insert, Grade CV6, TiN - Everede Tool 04414
MFR# 04414ISO/ANSI# WCGT 06T304Series WCGT
$18.28List $20.45
Save 10%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeCV6
MaterialSolid Carbide
CoatingTiN
Description
The Everede Tool 04414 is a WCGT 06T304 solid carbide indexable insert, grade CV6, TiN coated.
Specifications
Ansi codeWCGT-32.51
Coating finishTiN
Coating processCVD
Corner radius in1/64
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code315
Insert styleWCGT
Iso codeWCGT 06T304
Manufacturer gradeCV6
Material gradeC5; C6
Relief angle7
ShapeTrigon
StandardsANSI; ISO
Thickness in5/32
