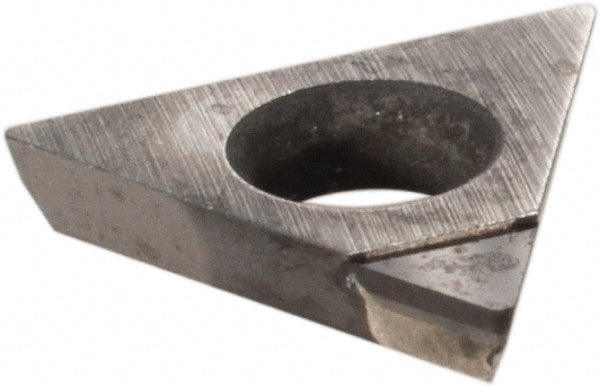

TDHB 07S102 Polycrystalline Diamond Insert, Grade PCD - Everede Tool 05009
MFR# 05009ISO/ANSI# TDHB 07S102Series TDAB
$130.70List $152.59
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradePCD
MaterialPolycrystalline Diamond
Description
The Everede Tool 05009 is a TDHB 07S102 polycrystalline diamond indexable insert, grade PCD.
Specifications
Ansi codeTDHB-1.30.80.5
Corner radius0.0070
Included angle60
Inscribed circle0.1600
Insert holding methodScrew
Insert materialPolycrystalline Diamond
Insert shapeTriangle
Insert size code07
Insert styleTDAB
Iso codeTDHB 07S102
Manufacturer gradePCD
Relief angle15
ShapeTriangle
StandardsANSI; ISO
Thickness in3/64
