Fairlane

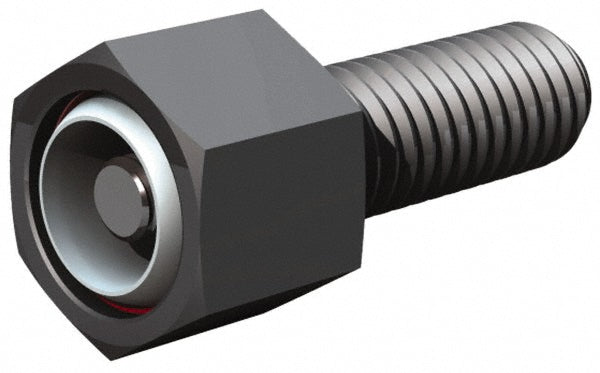

5/8-18 in; 5/8-18 Positioning Stop - Fairlane BUH-0620X2
MFR# BUH-0620X2
$51.77List $64.98
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Fairlane BUH-0620X2 is a 5/8-18 in; 5/8-18 positioning stop.
Specifications
Assembly typeHex Head
Ball diameter in3/4
Ball materialStainless Steel
Head height in11/16
Hex size in15/16
Internal hex size in1/4
Load rating11874lb
Load rating lb11874.00
Replaceable padYes
Replacement pad diameter in5/8
Replacement pad height in5/8
Stand off in1/4
Swivel angle20
Thread length in2in; 2
Thread size5/8-18 in; 5/8-18
