Fowler

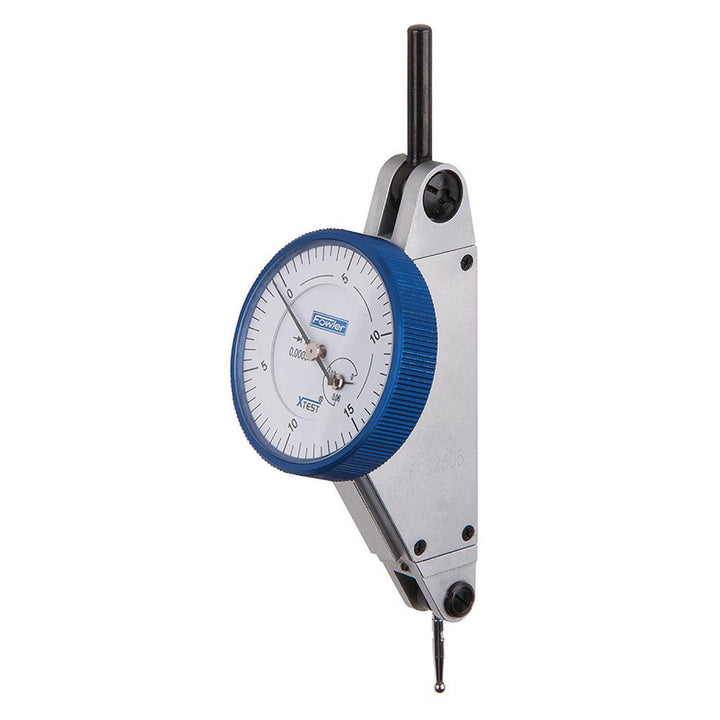

0.0600" Dial Indicator, 0.000500" grad - Fowler 52-562-001-BD
MFR# 52-562-001-BDSeries X
$164.38List $197.92
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Fowler 52-562-001-BD is a 0.0600" dial indicator. 0.000500" graduation. Meets NIST Certified.
Specifications
Accuracy0.000500
AttachmentsYes
Ball diameter0.0800
Bearing typeJeweled
CalibratedYes
Contact point length in1/2
Contact point swivel angle210
Contents(2) Dovetail Stems; .040 & .120 Diameter Contact Points; Fitted Case; Indicator; Wrench
Dial colorWhite
Dial diameter in1-1/2
Dial graduation0.000500
Dial reading0-15-0
FeaturesAutomatic Reversal; Jeweled Movement; Revolution Counter
Indicator styleHorizontal
Maximum measurement0.0600
Number of contact points included2
Range per revolution0.0600
StandardsNIST Certified
StyleHorizontal
Traceability certification includedNIST
