Fowler

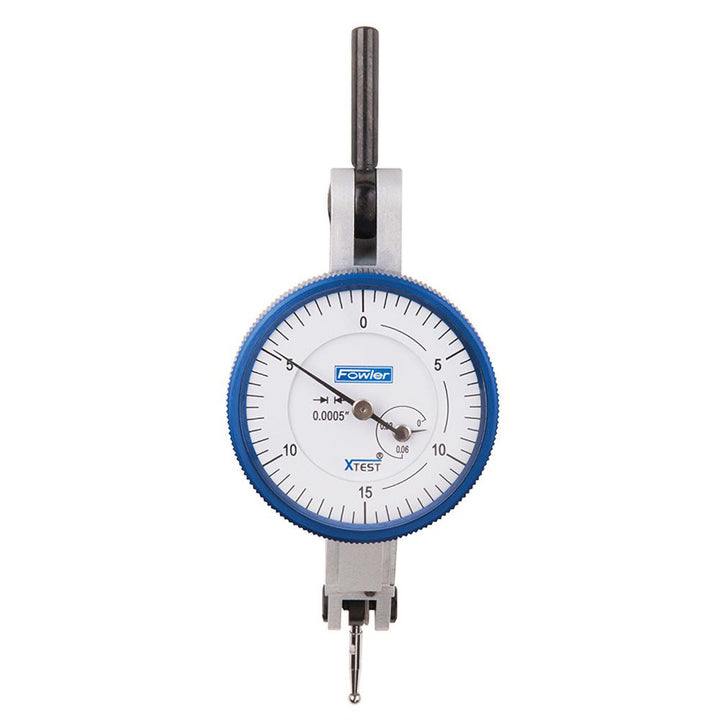

0.0600" Dial Indicator, 0.000500" grad - Fowler 52-562-002-0
MFR# 52-562-002-0Series X
$175.87List $211.75
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Fowler 52-562-002-0 is a 0.0600" dial indicator. 0.000500" graduation. Meets NIST Certified.
Specifications
Accuracy0.000400; 0.001200
AttachmentsNo
Ball diameter0.0800
Bearing typeJeweled
CalibratedYes
Contact point length in5/8
Contact point swivel angle210
ContentsNIST Certificate of Calibration
Dial colorWhite
Dial diameter in1
Dial graduation0.000500
Dial reading0-15-0
FeaturesAutomatic Reversal; Jeweled Movement; Revolution Counter
Indicator styleHorizontal
Maximum measurement0.0600
Number of contact points included2
Range per revolution0.0600
StandardsNIST Certified
StyleHorizontal
