Fullerton
23/64" 2-Flute 118° Drill - Fullerton 15140
MFR# 15140Series 1510
$95.08List $110.97
Save 14%
23 in stock, ships in 1-3 days. Stock at supplier warehouse.
Stock updated Oct 4. We confirm every order and email you right away if anything changes.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size23/64
Flutes2
Description

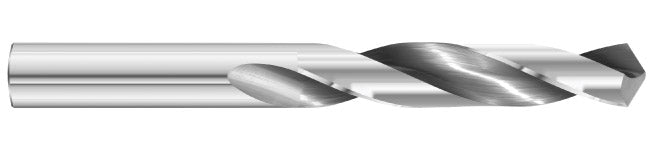

The Fullerton 15140 is a 23/64" 2-flute solid carbide drill. 2.75" length of cut, 4.25" overall length, 25° helix. Series 1510.
Specifications
CoolantNo
Cutting directionRight Hand Cutting
Drill bit materialSolid Carbide
Drill bit size in23/64
Drill point angle118
Drill point angle degrees118
End typeFour Facet
Flute length in2.75
Flute spiralRight Hand Spiral
Helix angle25
Number of flutes2
Overall length in4.25
Shank diameter in0.3594
