Fullerton
0.315" 3-Flute 130° Drill - Fullerton 15690
MFR# 15690Series 1565
$82.88List $96.74
Save 14%
116 in stock, ships in 1-3 days. Stock at supplier warehouse.
Stock updated Oct 4. We confirm every order and email you right away if anything changes.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description

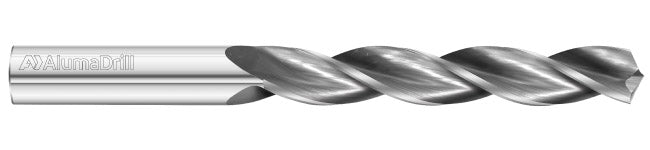

The Fullerton 15690 is a 0.315" 3-flute solid carbide drill. 2.3622" length of cut, 3.937" overall length, 30° helix. Series 1565.
Specifications
CoolantNo
Cutting directionRight Hand Cutting
Drill bit materialSolid Carbide
Drill bit size0.315
Drill point angle130
Drill point angle degrees130
End typeHi-Performance
Flute length in2.3622
Flute spiralRight Hand Spiral
Helix angle30
Number of flutes3
Overall length in3.937
Shank diameter in0.315
