Gibraltar

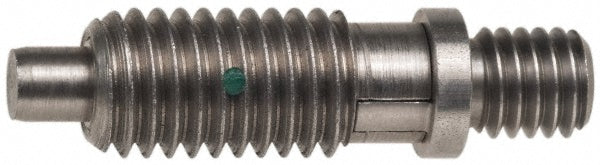

Spring Plunger - Gibraltar 34049
MFR# 34049
$33.38List $41.18
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar 34049 is a spring plunger.
Specifications
Final end force lb10.00
Head height in7/16
Initial end force lb5.00
Knob styleThreaded Stud (without Knob)
Length under head shoulder in1-5/16
Locking elementYes
Maximum plunger diameter0.3110
Plunger diameter tolerance+0.0010
Plunger length2.1860
Plunger projection in5/16
Plunger typeLocking
Stud thread size1/2-13
Thread length in1
