Gibraltar
3/8-16 in Spring Plunger - Gibraltar 34238
MFR# 34238
$23.65List $29.69
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

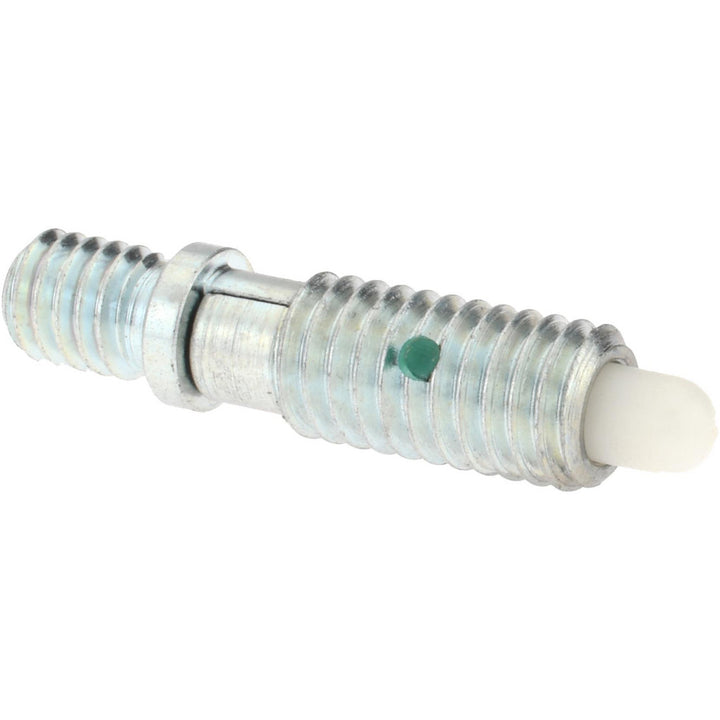

The Gibraltar 34238 is a 3/8-16 in steel spring plunger.
Specifications
Final end force8lb
Final end force lb8.00
FinishZinc-Plated
Head height in13/32
Initial end force1.5lb
Initial end force lb1.50
Knob styleThreaded Stud (without Knob)
Length under head shoulder in31/32
Locking elementYes
MaterialSteel
Maximum plunger diameter0.2160
Plunger diameter tolerance+0.0010
Plunger length1.6910
Plunger projection in7/32
Plunger typeLocking
Stud thread size5/16-18
Thread length in3/4
Thread size3/8-16 in
