Gibraltar
1/2-13 in Spring Plunger - Gibraltar 34239
MFR# 34239
$28.34List $35.57
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

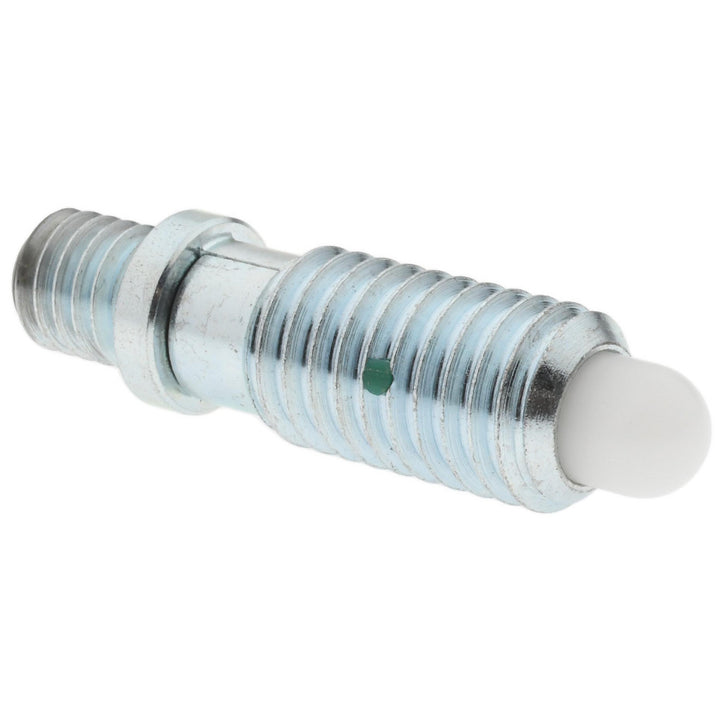

The Gibraltar 34239 is a 1/2-13 in steel spring plunger.
Specifications
Final end force10lb
Final end force lb10.00
FinishZinc
Head height in7/16
Initial end force2.5lb
Initial end force lb2.50
Knob styleThreaded Stud (without Knob)
Length under head shoulder in1-1/8
Locking elementYes
MaterialSteel
Maximum plunger diameter0.3100
Plunger diameter tolerance+0.0010
Plunger length1.9370
Plunger projection in1/4
Plunger typeLocking
Stud thread size3/8-16
Thread length in7/8
Thread size1/2-13 in
