Gibraltar

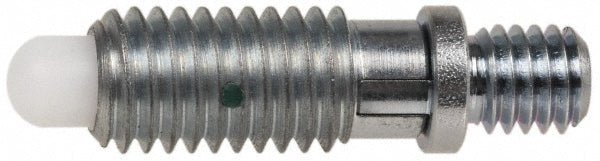

Spring Plunger - Gibraltar 34246SS
MFR# 34246SS
$32.80List $40.46
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar 34246SS is a spring plunger.
Specifications
Final end force lb3.00
Head height in13/32
Initial end force lb0.75
Knob styleThreaded Stud (without Knob)
Length under head shoulder in31/32
Locking elementYes
Maximum plunger diameter0.2160
Plunger diameter tolerance+0.0010
Plunger length1.6910
Plunger projection in7/32
Plunger typeLocking
Stud thread size5/16-18
Thread length in3/4
