Gibraltar

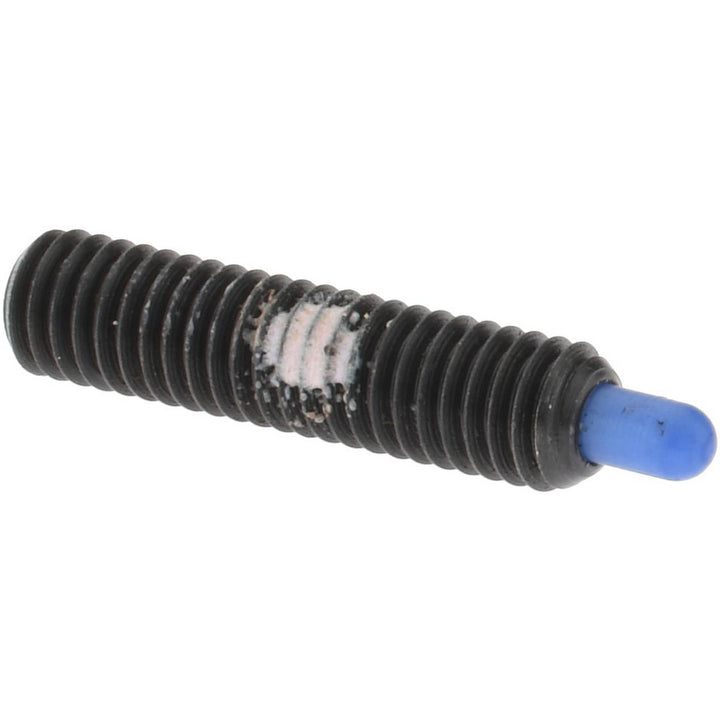

M6 x 1.00 Spring Plunger - Gibraltar 67082G
MFR# 67082G
$9.05List $9.33
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar 67082G is a M6 x 1.00 steel spring plunger.
Specifications
Body length25.00
Body materialSteel
Final end force kg5.85
Final end force lb12.90
FinishBlack
Hex size (mm)3.00
Initial end force kg1.35
Initial end force lb2.98
Locking elementNo
Maximum plunger diameter (mm)3.02
Nose materialDelrin
Plunger length (mm)25.00
Plunger projection (mm)5.00
Thread length (mm)25.00
Thread sizeM6 x 1.00
Tolerance (mm)+0.00
