Gibraltar

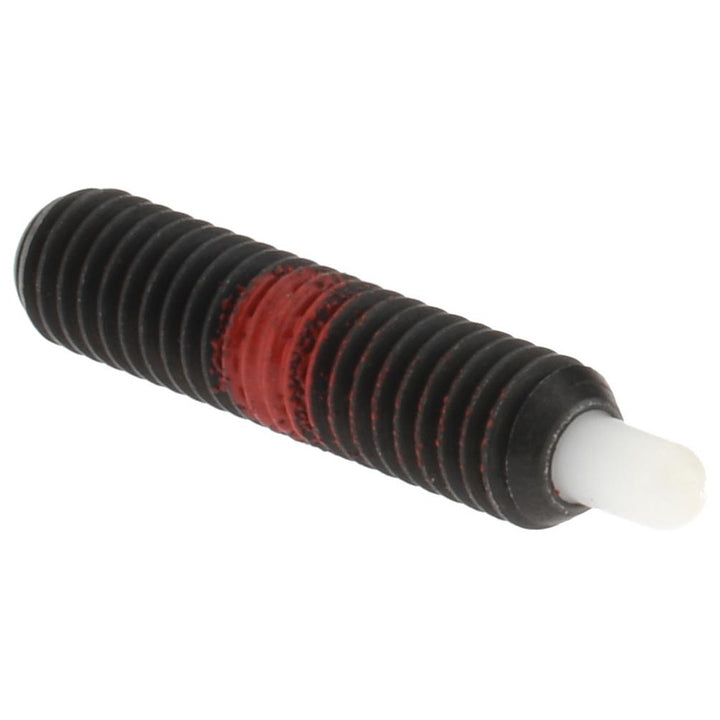

M6 x 1.00 Spring Plunger - Gibraltar 67090G
MFR# 67090G
$8.73List $10.96
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar 67090G is a M6 x 1.00 steel spring plunger.
Specifications
Body length25.00
Body materialSteel
Final end force kg1.80
Final end force lb3.97
FinishBlack
Hex size (mm)3.00
Initial end force kg0.45
Initial end force lb1.00
Locking elementNo
Maximum plunger diameter (mm)3.02
Nose materialDelrin
Plunger length (mm)25.00
Plunger projection (mm)5.00
Thread length (mm)25.00
Thread sizeM6 x 1.00
Tolerance (mm)+0.00
