Gibraltar
M12 x 1.75 Spring Plunger - Gibraltar 67093G
MFR# 67093G
$13.19List $16.56
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

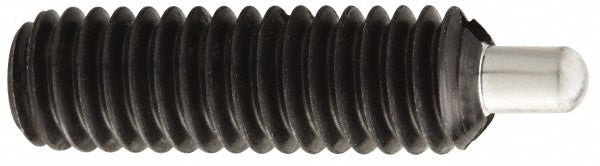

The Gibraltar 67093G is a M12 x 1.75 steel spring plunger.
Specifications
Body length32.00
Body materialSteel
Final end force kg4.19
Final end force lb9.24
FinishBlack
Hex size (mm)6.00
Initial end force kg1.22
Initial end force lb2.70
Locking elementNo
Maximum plunger diameter (mm)6.30
Nose materialDelrin
Plunger length (mm)32.00
Plunger projection (mm)6.00
Thread length (mm)32.00
Thread sizeM12 x 1.75
Tolerance (mm)+0.00
